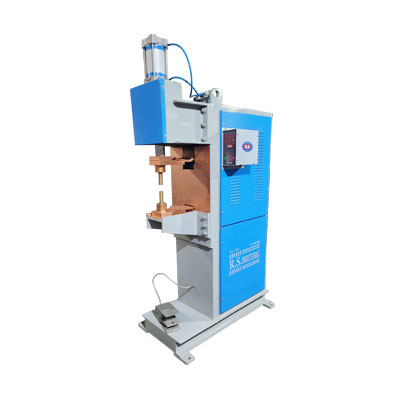

Projection Welding Machine
Projection Welding Machine
Projection Welding Machines are designed for light to heavy duty applications. A variety of electrodes and toolings can be fitted to meet the needs of vast number of industrial application.
- Heavy Steel Fabrication
- Low Intertia Ram
- Fixed of Adjustable Bottom Arm
- Encapsulated Welding Transformer
- Low Impedance Secondary circuit
- Easy to use Digital COMS or
- Microprocessor Control
- Rigid Frame
- High Qualiet Weld
- Wider Application Range
- Longer Life
- Higher Welding Capacity
- Consistent Weld Quality
| Machine Type | PA-40 | PA-75 | PA-150 | PA-260 | E-360 | |
| Rating at 50% Duty Cycle | KVA | 40 | 75 | 150 | 150 | 300 |
| Max. Secondary Short Circuit Current | Amps | 25000 | 30000 | 45000 | 45000 | 76000 |
| Standard Stroke mm | mm | 100 | 100 | 100 | 100 | 100 |
| T - Slot Table Size | mmxmm | 210x210 | 210x210 | 210x210 | 210x210 | 320x320 |
| Throat Depth (T.D.) | mm | 275 | 275 | 275 | 275 | 300 |
| Throat gap (T.G.) min | mm | 275 | 275 | 300 | 210 | 210 |
| Throat gap (T.G.) max | mm | (Fixed) | (Fixed) | (Fixed) | 510 | 555 |
| Max. Electrode Force at 5.6kg/cm | kg | 425 | 680 | 960 | 960 | 1760 |
| Weld Cylinder dia | mm | 100 | 125 | 150 | 150 | 200 |
